Description

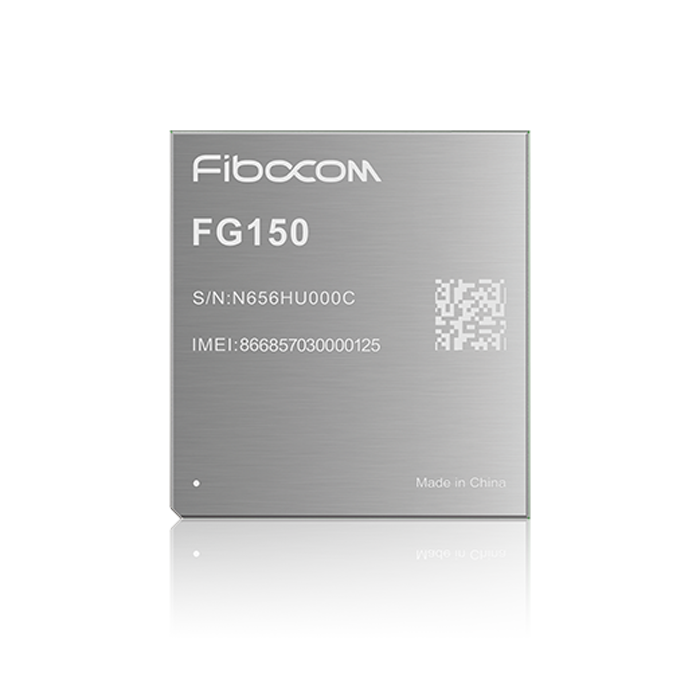

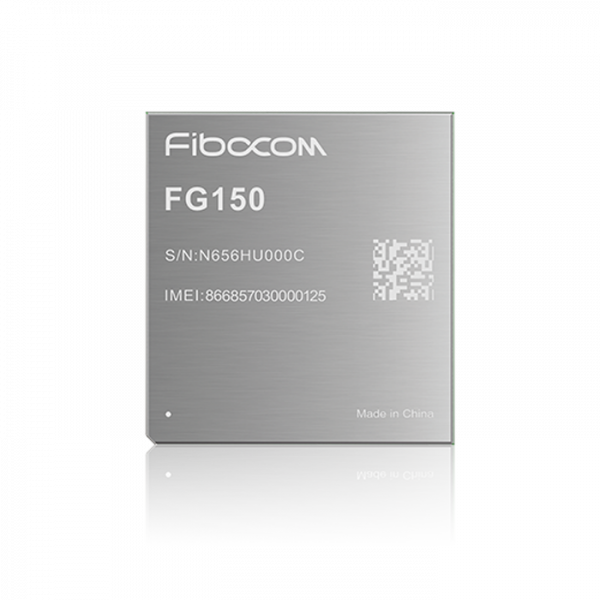

Fibocom FG150-AE 5G module Specifications:

* Product type: 5G Cellular Module

* Brand: Fibocom

* Package: LGA

* Support LTE: Cat 20 and above

* Support 4G LTE FDD: B1/B2/B3/B5/B7/B8/B20/B28/B32

* Support 4G LTE TDD: B34/B38/B39/B40/B41/B42/B43**

* Support 3G WCDMA: B1/B2/B3/B5/B8

* 5G Operation mode: NSA & SA

* NR MIMO:
– DL 4 x 4 MIMO: n1, n3, n7,n38, n41, n78, n79
– UL 2 x 2 MIMO: n41, n78, n79

* LTE MIMO:
– DL 4 x 4 MIMO: B1, B3 ,B7, B32, B34, B38, B39, B40, B41, B42
– UL 1 x 1 MIMO

* Downlink:
– NR sub6: 4 x 4 MIMO 256QAM 1CC(4 layers)
– LTE: 4 x 4 MIMO 1024QAM 7CC(6CC 24 layers)
– NR sub6: 2 x 2 MIMO 256QAM
– LTE: 1 x 1 MIMO 256QAM

* Antenna: 6 or 8 Optional +1(GPS)

* Interfaces
– PCIe: PCIe 3.0
– USB3.1:x 1
– UART
– SPI
– GPIO:
– I2C:
– SDIO
– UIM:
– I2S:
– MIPI:
– RGMII

* GNSS: GPS/GLONASS/Galileo/Beidou

* Power Supply: 3.3V~4.4V(Typical 3.8V)

* Operating Temp.:-30℃~+75℃

* OS Drivers: Linux 4.1**/Android 9.0**

* Other Features
– Voice: VoLTE
– SMS: SMS over IP(IMS)
– Audio
– FOTA

* Approvals: RoHS*/Reach*/HF*/CCC*/SRRC*/CTA*/CE*/GCF*/RCM*/KCC*/Geteki*/CMCC*/CTCC*/CUCC*/VDF*/DT*/Optus*/Telstra*/Telefonica*/Swisscom*

* Dimension: 41.00 x 44.00 x 2.75(mm)
