Description

Huawei 5G CPE Pro Specifications:

5G/4G
—————————-
* Communication Standard: 3GPP Release 15
* Applicable Network: 5G/4G LTE
* Network Mode: NSA/SA
* 5G Transmission Rate: 2.33Gbps / 1.25Gbps (Theoretical value. The actual rate depends on the operator)
* 4G Transmission Rate: 1.6Gbps / 150Mbps (Theoretical value. The actual rate depends on the operator)
* Antenna Type: 5G / LTE main and diversity antennas

Wireless
—————————-
* Transmission Standard:
– Huawei H112-372: 802.11ac/a/n 2 x 2 & 802.11b/g/n 2 x 2, MIMO
– Huawei H112-370: 802.11ax/ac/a/n 4 x 4 & 802.11b/g/n 2 x 2, MIMO

* Wireless Transmission Rate:
– Huawei H112-372: DBDC, 1167Mbps
– Huawei H112-370: DBDC, 5100Mbps

* Wireless Frequency Band: 2.4GHz & 5GHz, dual-band auto-selection

* Antenna Type:
– Huawei H112-372: Dual-band Wi-Fi antenna with four signal amplifiers
– Huawei H112-370: Dual-band Wi-Fi antenna with six signal amplifiers

Antenna
—————————-
* Two 5G antenna extension ports, allowing users to purchase antennas

Processors
—————————-
– Huawei H112-372: Balong 5000 multi-mode chip, GigaHome dual-band Wi-Fi chip
– Huawei H112-370: Balong 5000 multi-mode chipset

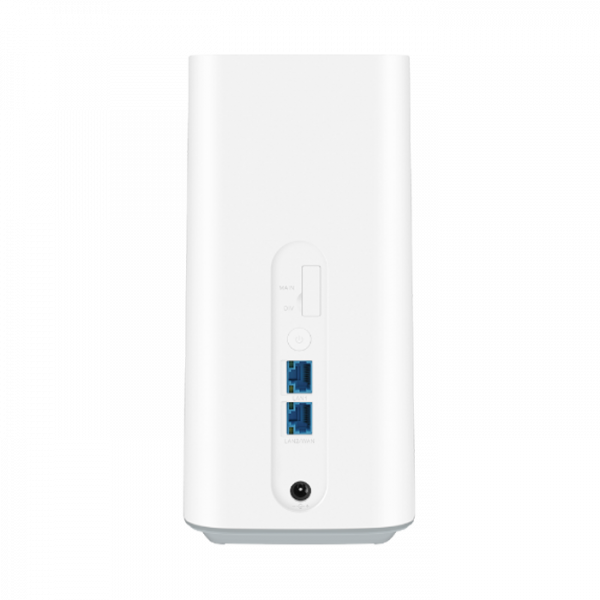

Network Port
—————————-
– Huawei H112-372: One Wan / Lan GE port, one Lan GE port, one SIM card slot (Nano-SIM)
– Huawei H112-370: One Wan / Lan GE port, one Lan GE port, one TEL port, one SIM card slot (Nano-SIM)

Button
—————————-
* Reset/Power/H, support HiLink device one-button pairing, compatible with WPS

Led Indicator
—————————-
* 5G/4G/Wi-Fi

Power Supply
—————————-
* Power: < 24W
* AC / DC Power Supply: AC: 100V – 240V 50Hz / 60Hz, DC: 12V / 2A

Environment
—————————-
* Temperature: Operating temperature: 0 °C ~ 40 °C, storage temperature: -20 °C ~ +70 °C
* Humidity: 5% ~ 95% (non-condensing)

Dimensions and Weight
—————————-
* Dimensions: 99mm x 107mm x 215mm
* Weight: About 700g (excluding the power adapter)

Packing List
—————————-
* HUAWEI 5G CPE Pro: 1 (standard configuration)
* Power Adapter: 1 (standard configuration)
* Quick Start: 1 (standard configuration)
* Ethernet Cable: 1 (standard configuration)
* Warranty Card: 1 (optional)
