Description

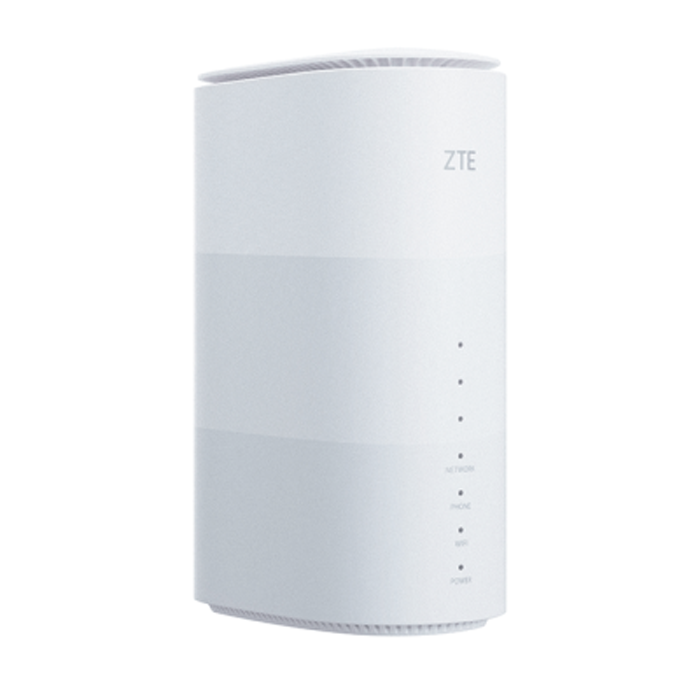

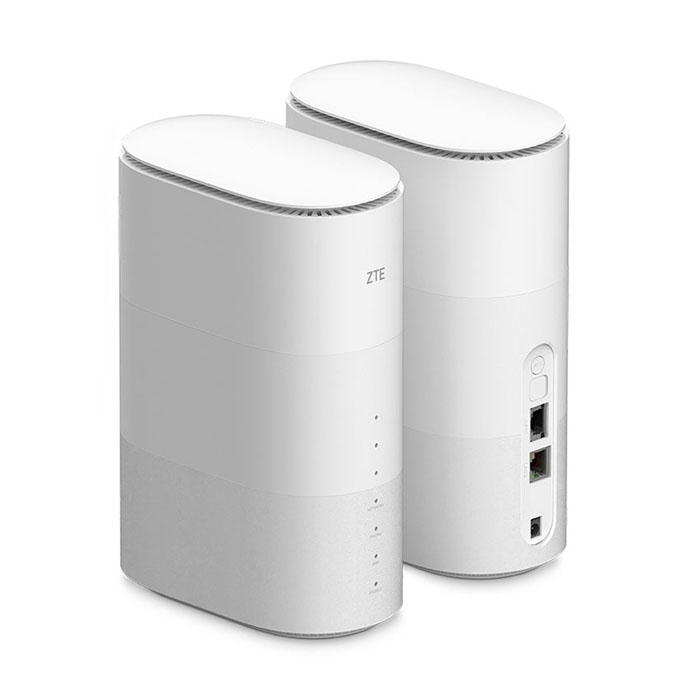

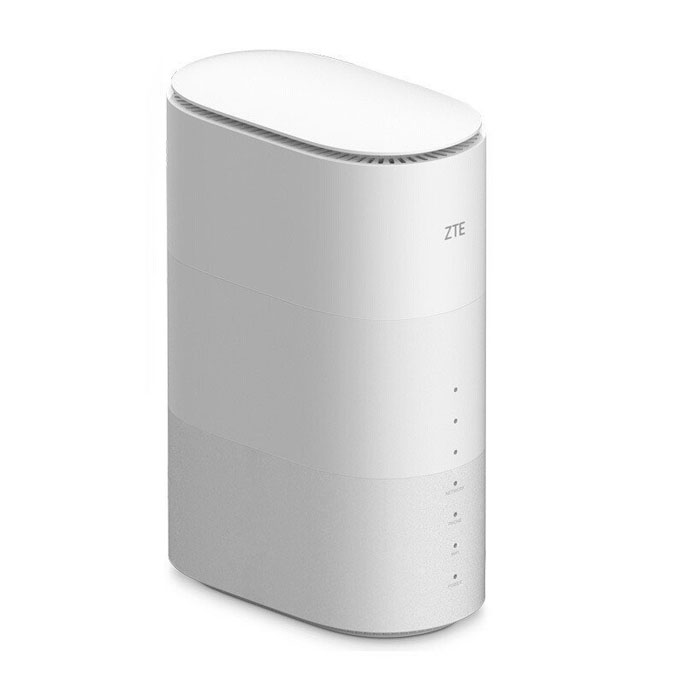

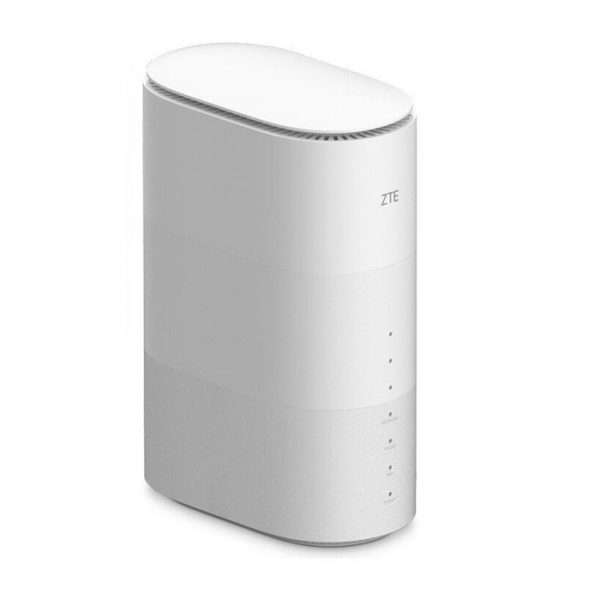

ZTE 5G CPE MC801 Key Features:

* Qualcomm Snapdragon X50 5G modem with download speeds of up to 2.8 Gbps

* 5G NR and 4G LTE network supported

* Support 802.11 a/b/g/n/ac/ax and dual-band 2.4GHz/5GHz

* Support up to 128 Wi-Fi users simultaneously

* One 10G Ethernet connection port

ZTE MC801 5G WiFi Router Specifications：

* Category：5G Router

* Communication Standard: 3GPP Release 15

* Chipset：Qualcomm Snapdragon X50 + IPQ8072 + SM8150

* Supported networks:

– Network mode: NSA
– Network technology: 5G NR + LTE EN-DC
– 5G NR: Sub6G n41, n77, n78, n79
– 4G LTE Global FDD and TDD, 600MHz~3.8GHz, CAT20

* Data rate speeds:

– LTE FDD (DL Category 20, UL Category18): DL 2Gbps/UL 211Mbps
– LTE TDD (DL Category 20, UL Category18): DL 1.4Gbps/UL 42Mbps
– 5G Sub6G DL 1.22Gbps /UL 76 Mbps
– LTE FDD + Sub6G DL 2.22Gbps / UL 211Mbps or 76Mbps

* Modulation: DL 256QAM, UL 64QAM

* Wi-Fi: 802.11a/b/g/n/ac/ax(WiFi 6), dual-band, 4 x 4 MIMO

* WiFi 5GHz 4 x 4 MIMO 11ax, ~2.4Gbps

* WiFi 2.4GHz 4 x 4 MIMO 11ax ~1.2Gbps

* WLAN encryption standards: WPA, WPA2, WPS

* Support up to 128 WiFi users simultaneously

* Interface:
– SIM card slot(NANO SIM) x 1
– Tel port(RJ11) x 1
– WAN/LAN GE port * 1
– 1GE port(RJ45) * 1
– DC port x 1

* Power supply: 12V / 4A

* Button: Power button, reset button

* Cellular Antenna Ports: No

* SIM Card size type: NANO SIM

* Number of WiFi connections: 128 x WLAN + 2 x LAN

* Support OS: Linux

* Software version: EN_ZTE_MC801V1.0.0B04

* Other functions: MAC address filtering, Wi-Fi encryption authentication, VPN, IPv6 support, VoLTE, DMZ, SSID, Guest SSID, Port Forwarding, Watchdog Service, DHCP settings, network selection, APN settings etc.

* Dimension: 225 x 154.5 x 87 mm

* Package content:
– ZTE 5G Router MC801 x 1
– 12V/5A power adapter x 1
– Quick Start Manual x 1
